GaiaRay Portable Solar Power Station With LiFePO4 Battery Backup
GaiaRay Portable Solar Power Station With LiFePO4 Battery Backup
Couldn't load pickup availability
Keep essential devices powered at home or away with a portable solar power station built around a LiFePO4 battery.
- Three power options: Choose 100W with 76.8Wh, 300W with 230Wh, or 500W with 460Wh to suit your power needs.

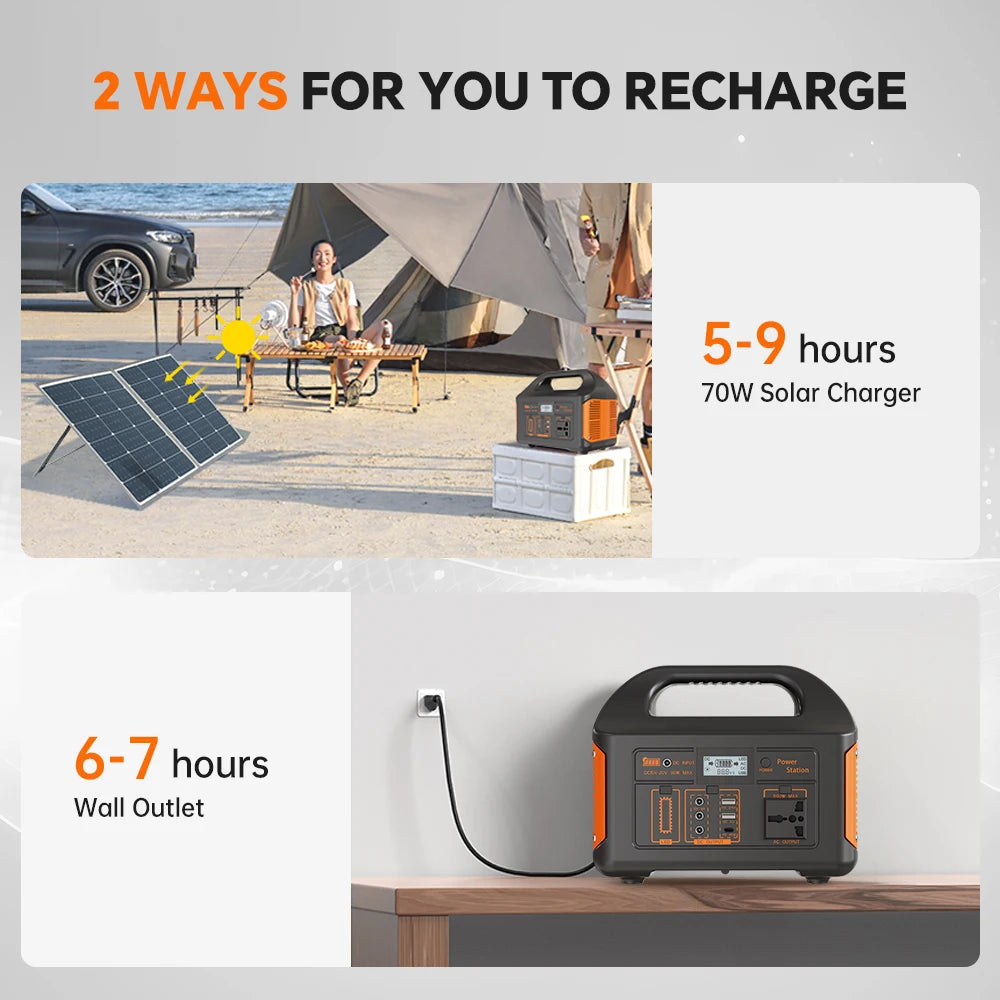

- Flexible charging: Use the charger port or a solar panel input rated for 15–20V, with maximum solar charging of 30W, 50W, or 90W across the options.

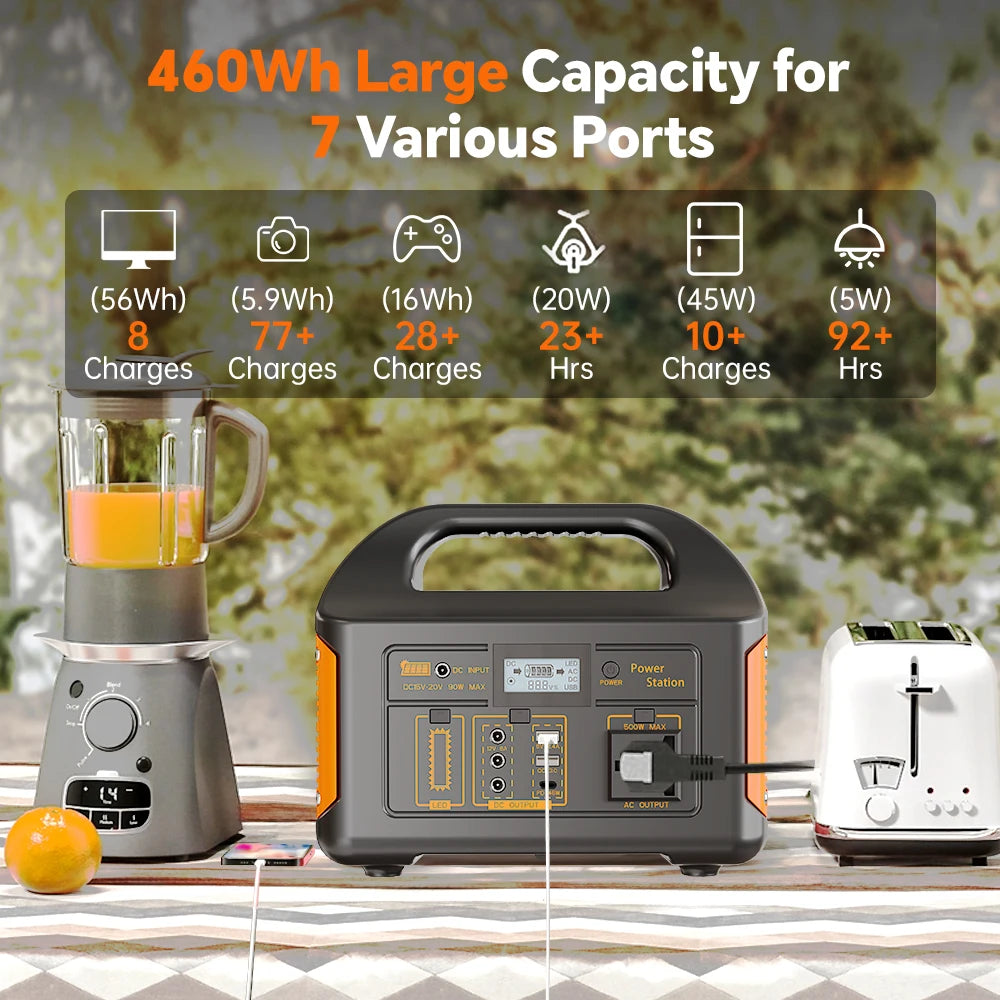

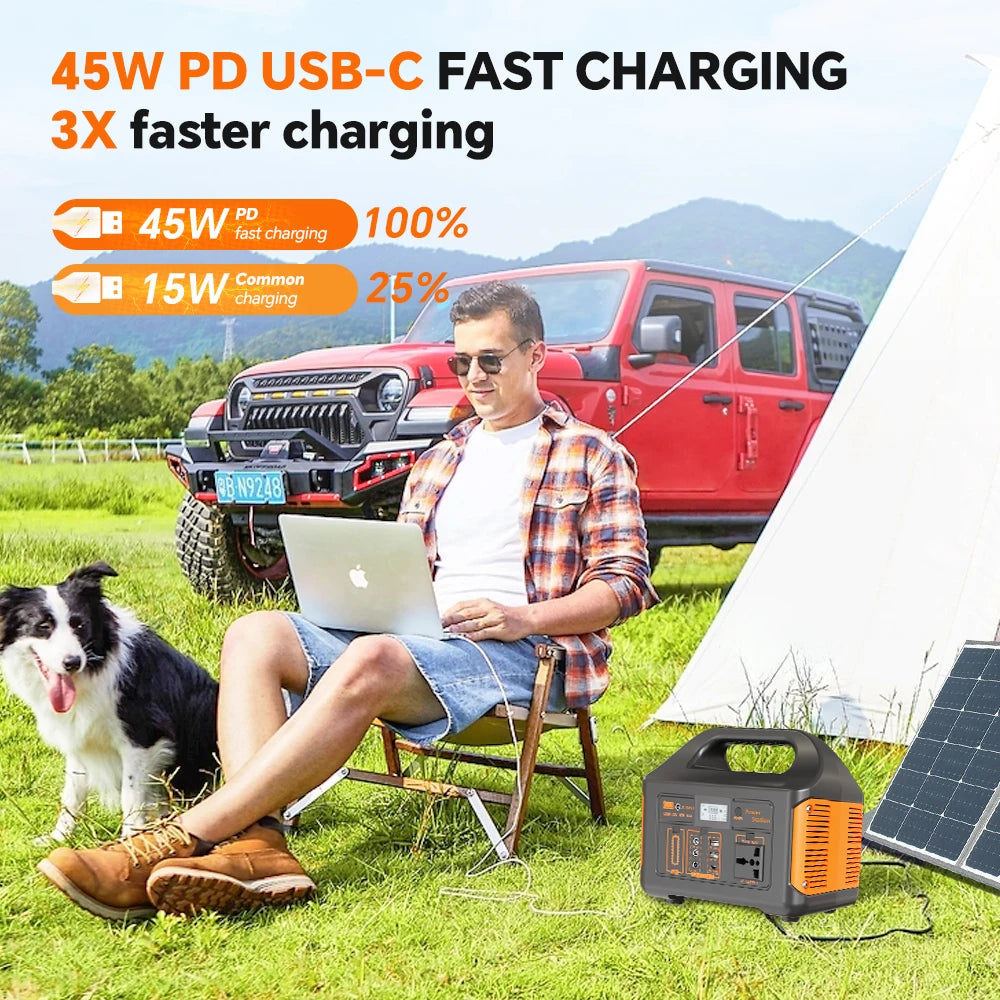

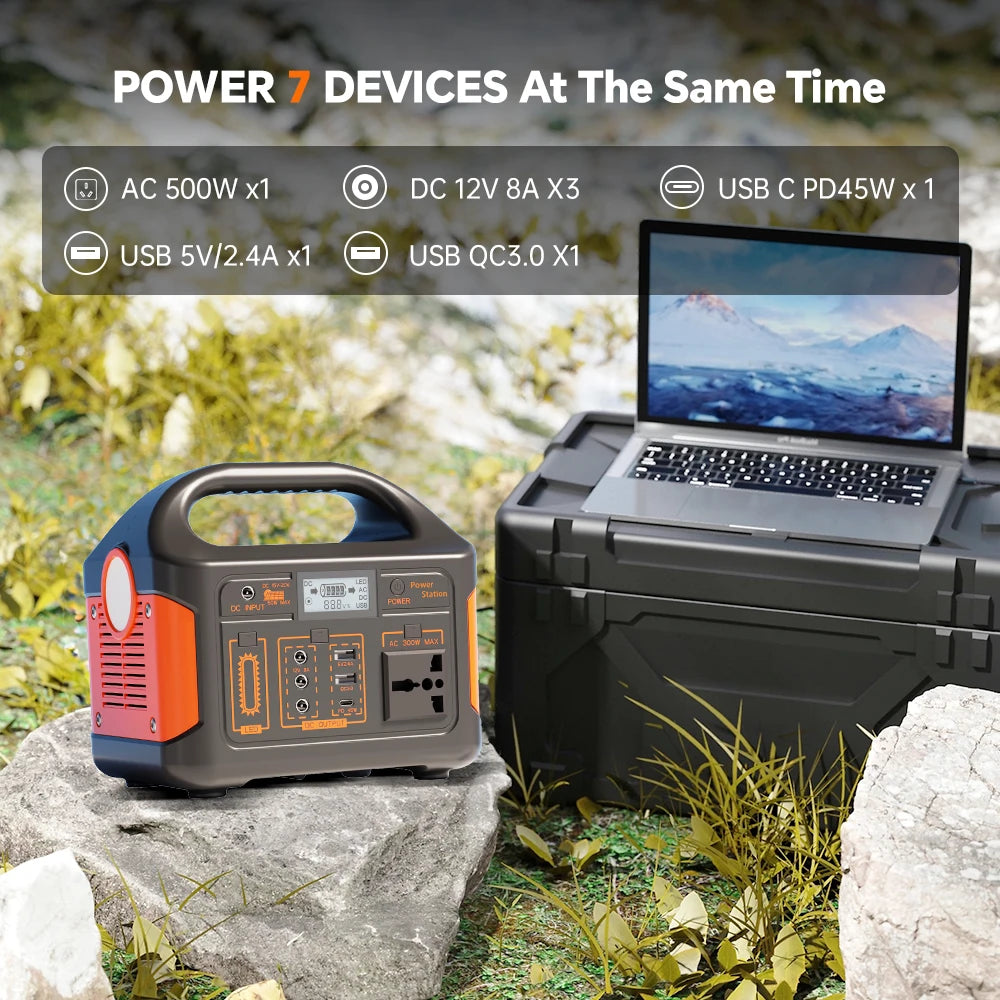

- Multiple outputs: Power compatible devices through a universal AC socket, USB ports, and DC5521 ports; output options include 110V or 220V AC and USB PD up to 45W.
- Useful monitoring and safeguards: Check battery voltage and charge or discharge status on the LCD, while built-in protections cover overload, over-temperature, low voltage, over-voltage, and short circuits.
Rated Power |
100W |
300W |
500W |
Output Waveforr |

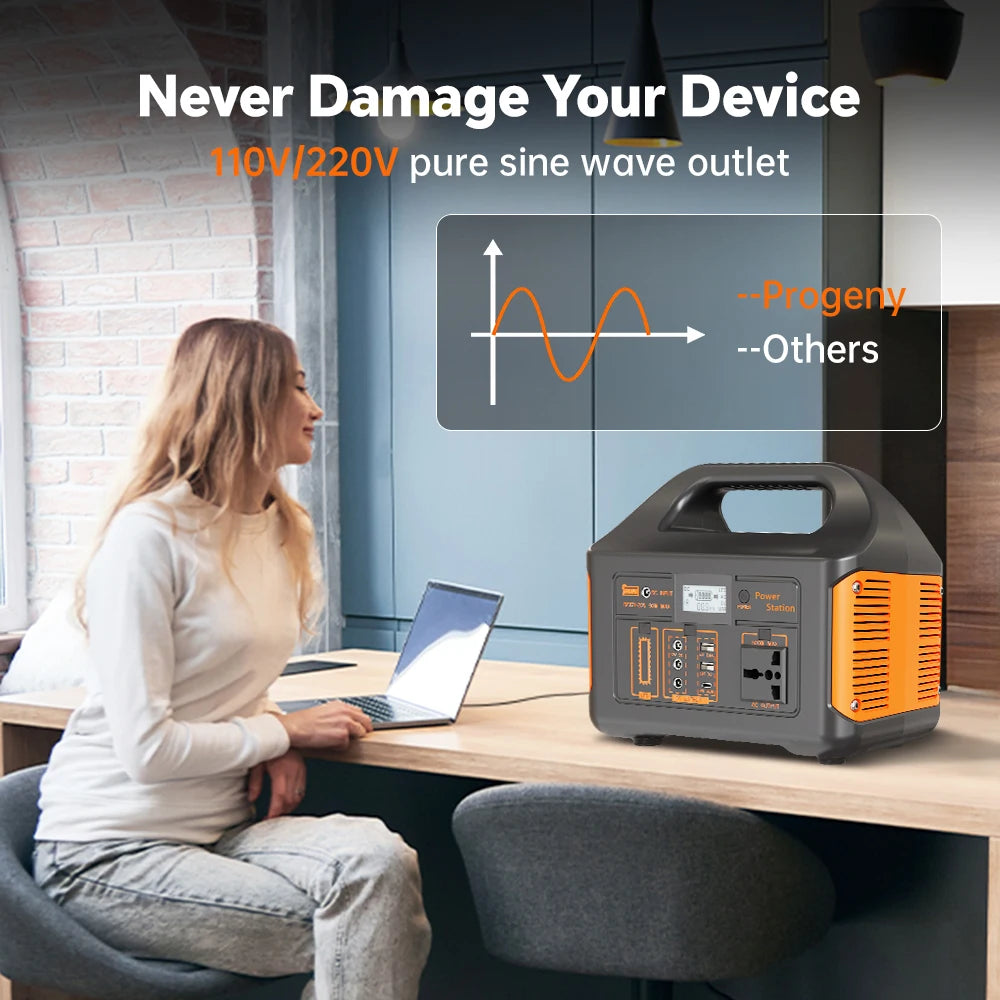

Modified sine wave |
Pure Sine Wave |
|
AC Output Voltage |
110V,220V |
||
AC Output Frequency |
50Hz/60Hz ± 0.5Hz |
||
Conversion Efficiency |
Maximum Value>90% |
||
Charging interface |
Charger Port and Solar Panel Charging Port DC5521(Built in solar intelligent controller) |
||
AC Output Socket |
Universal Socket |
||
DC Output Voltage |
DC5V 2.4A, 2 * USB;DC12V 3A, 2 * DC5521 |
USB 5V 2.4A; QC 3.0; PD 45W; DC12V8A; 3 * DC5521 Port |
|
LED Light States |
LED bright, half bright, flashing,LED off 4 states |
LED high beam,low beam. Bight, half Bight, fishing LED of 6 states |
|
Battery Type |
LiFePO4 |
||
Battery Capacity |
76.8Wh |
230Wh |
460Wh |
Solar panel charging |
15V-20V Max 30W |
15V-20V Max 50W |
15V-20V Max 90W |
Charging Current |
Maximum Value 2A |
Maximum Value 2.5A |
Maximum Value 6A |
AC Charqer Specifications |
5v 2A |
14.6V 2A |
16V 5A |

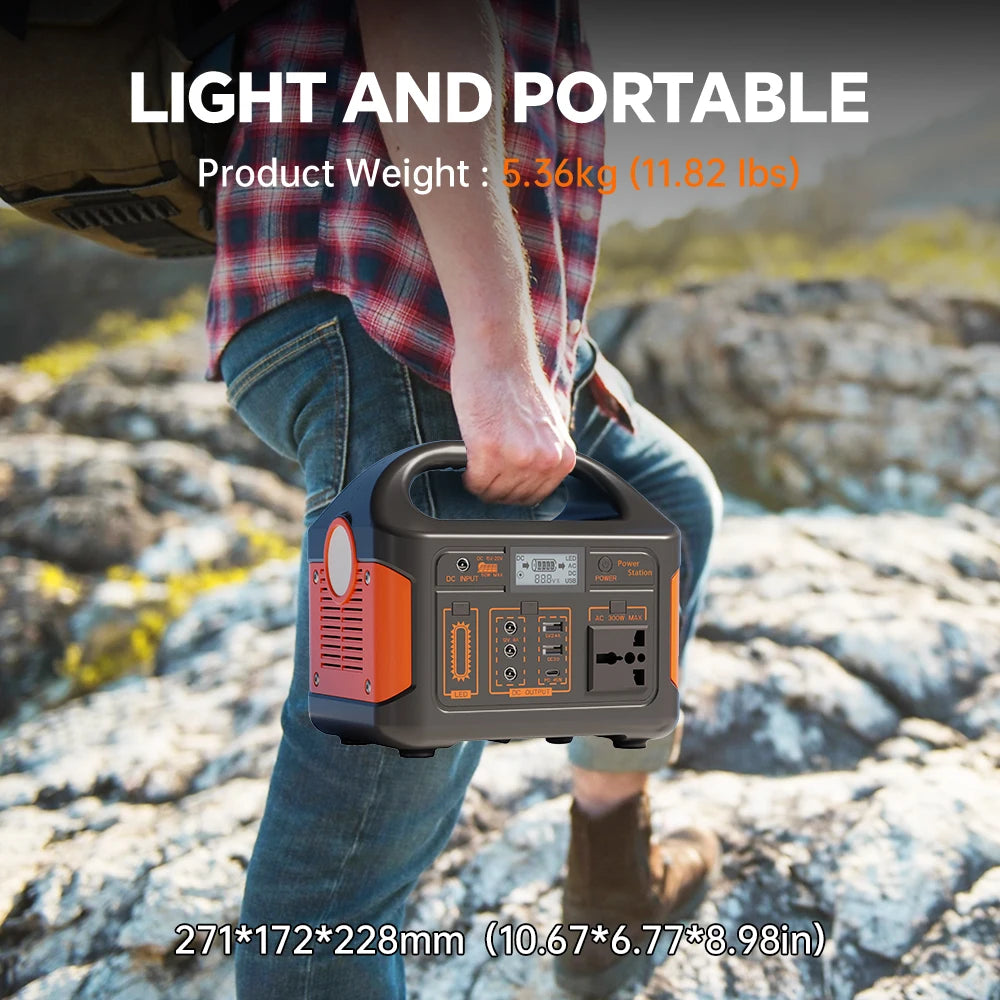

Product size (mm) |
160*100*143mm |
211*160*196mm |
271*172*220mm |
Outer packaging size (mm) |
200*100*150mm |
260*160*200mm |
300*200*260mm |
Charging Time |
After full discharge,the battery capacity reaches 80% after 5 hours OT |
||
LCD |
Battery Voltage, State of Charge, State of Charge, State of Discharge |
||
Heat Dissipation |
Intelligent Temperature Control Cooling Fan |
||
Noise |
1Meter Distance <45dB |
||
Protection Functions |
Low Voltage, Over voltage, OverLoad, Over Temperature, Short Circuit |
||
